Mini Universal Cassette Collar

Name: Mini Universal Cassette Collar
Brand: Universal (Fits All)
Price: 177.92 GBP
Availability: InStock

From: £136.96 Ex. VAT(£164.35 Inc. VAT)

(From 0 Reviews)

Description

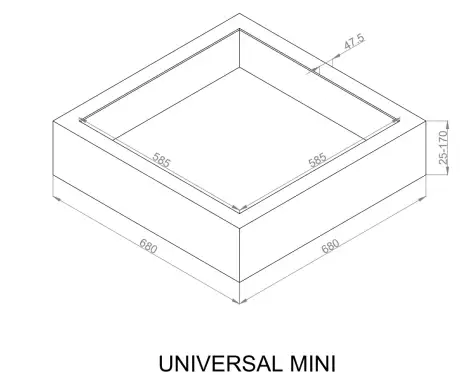

The Mini-Universal is a 680mm x 680mm collar, universal to all compact cassettes (585mm to 680mm facia grilles) on all split and VRV/VRF systems. The aperture is 585mm x 585mm.

All our products are manufactured using class 2 fire retardant resins for extra peace of mind.

Standard Colour RAL 9003 but please specify an alternative in the RAL box if required.

Available in Standard depths: 50mm/100mm/150mm.

Other depths between 25mm-170mm are available and can be ordered by selecting the range shown in the 'Depth' drop down box.

To specify the exact depth, click 'Proceed to Checkout' you will arrive at the 'Details' page. Write the exact depth you require in the 'Shipping Notes' free form text box before 'Proceed to Shipping'.

Please be aware that variations to standard colours and/or depths are more expensive and need to be manufactured and/or cut to order resulting in a longer delivery time by +3-5 days.

Manufacturer

Universal (Fits All)

Browse By Manufacturer

Dimensions

Length	680 mm
Width	680 mm
Height	25 mm
Weight	1.50

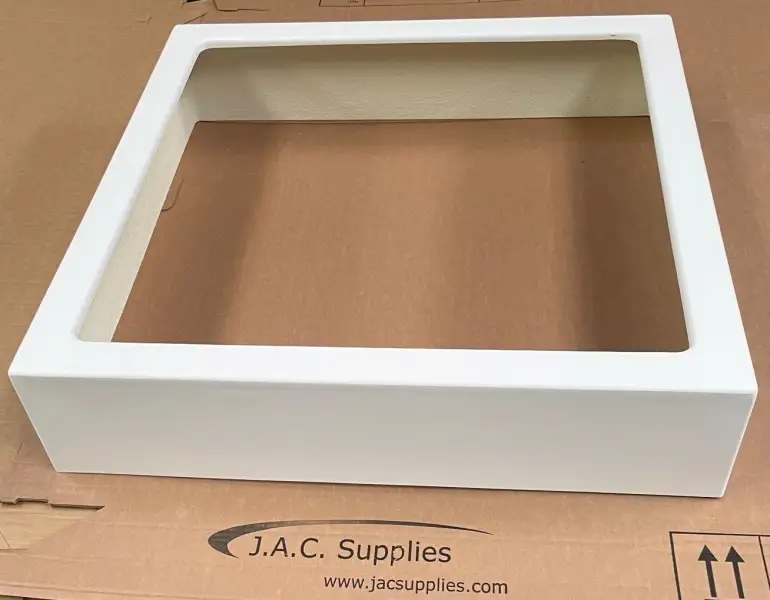

The Collar is a lightweight, one piece, GRP construction and is easily supported by the cassette fascia panel. No additional fixings are required. The collar is placed onto the cassette fascia panel. The assembly (comprising collar and fascia panel) is offered up to the fan coil body and then secured to the cassette as normal.
